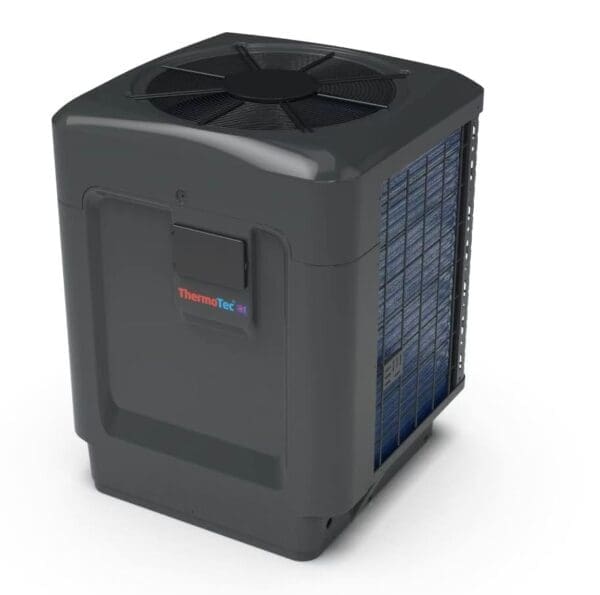

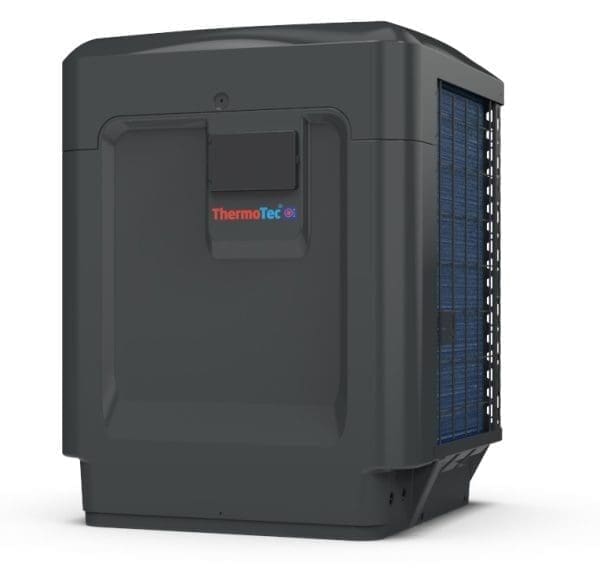

Thermotec Vertical Inverter Pool Heat Pump with Wifi
Thermotec Vertical Inverter Pool Heat Pump with Wifi
Thermotec Vertical Inverter Pool Heat Pump with Wifi
Please Contact Us if you need any assistance to select the best size and type of Thermotec Vertical Inverter Pool Heat Pump with Wifi. Heat Pumps will require a Bypass Kit, which is included in the price.
Single Phase KW
-
29kw £3,982
-
34kw £4,565
-
2 x Mounting Feet for up to 29kw Pump £60.00
Our prices exclude VAT which must be added at 20%. Note that we have financing options available with any purchase of our swimming pools or associated products
- Overview
-
Description
MY POOL DIRECT is the trusted specialist supplier of swimming pool heat pumps throughout the UK and Europe. We have many years of experience in the market and have used our expertise to research and design our own range of swimming pool heat pumps.
New, the Thermotec Eco Inverter range of pool heat pumps offers an excellent inverter-driven heat pump at a low cost with high value for money.
The Thermotec Eco Inverter range is fully inverter driven. This means that they automatically adjust the speed of the fan and compressor to precisely match the heat demand from the pool.
The ability to adjust the output of the heat pump allows the Thermotec Vertical Inverter Pool Heat Pump with Wifi to deliver greatly reduced running costs with COPs of up to 12.5. This means that for every 1kw of electricity used by the heat pump, 12.5kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market
In addition, the inverter technology has a reduced electrical startup requirement, making them ideal for properties with a sensitive or limited electrical supply.
Features
- Fully inverter driven with variable speed fan and compressor to deliver the lowest running costs with a maximum heat output
- High efficiency with COPs of up to 12.5. This means that for every 1kw of electricity used by the heat pump, up to 12.5kw of heat is returned to the pool.
- Equipped with an easy-to-use touch screen display/control panel.
- Top-quality Mitsubishi variable speed inverter compressor
- Brushless variable speed DC fan motor – very efficient with extremely quiet operation
- The Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
- Five different models: 7kw, 9kw, 12kw, 16kw, 19kw
- All models use single-phase power (ie 220v to 240v)
- Provides cooling and heating of pool water
- Suitable for pools, swim spas, hot tubs, and koi ponds, etc
- Soft start with reduced electrical startup requirements for properties with sensitive or limited power supplies
- Low noise, variable speed fan.
- Corrosion-resistant case
- Microprocessor controlled
- Automatic hot-gas defrosting.
- Built-in timer and clock
- Set Temperatures for this model are 15-43 degrees
- Silent mode
- Titanium heat exchanger – resistant to corrosion from chlorine or salt pools.
- Operates in air temperatures as low as -5 °C.
- 2-Year Warranty
Note: these heat pumps do not come with a power cable or plug. They require a heavy-duty piece of round flex cable with a 13A UK plug on the end.
The Eco Fun 7kw, 9kw, and 12kw can be run from a standard 13A UK Plug, larger models need to be hardwired as they can exceed 13ANote: These heat pumps come with 50mm Unions for the use with 1.5″ Solid pipework – with this you will need to purchase 2 x 50mm to 1.5″ Adaptors plus a bottle of glue as listed on the optional extras.
For above-ground pools please choose 2 x 1.5″ Threaded Hosetail’s and 2 x Jubliee clips which are available on the listing as an optional extra. This will allow you to connect 32mm/38mm flexi hose.
MY POOL DIRECT is the trusted specialist supplier of swimming pool heat pumps throughout the UK and Europe. We have many years of experience in the market and have used our expertise to research and design our own range of swimming pool heat pumps.
Thermotec Inverter Vertical 34KW
The ability to adjust the output of the heat pump allows the Thermotec inverter Vertical 34KW to deliver greatly reduced running costs with COPs of up to 13. This means that for every 1kw of electricity used by the heat pump, 13kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market
In addition, the inverter technology has a reduced electrical startup requirement, making them ideal for properties with a sensitive or limited electrical supply.
Features
- Fully inverter-driven with variable speed fan and compressor to deliver the lowest running costs with a maximum heat output
- High efficiency with COPs of up to 13. This means that for every 1kw of electricity used by the heat pump, 13kw of heat is returned to the pool.
- The desired water temperature can be adjusted in steps of 0.1 °C.
- Equipped with an easy-to-use 5-inch colour touch screen display / control panel.
- Remote control and monitor your heat pump via an app on your smartphone
- Top-quality Mitsubishi variable speed inverter compressor
- Brushless variable speed DC fan motor – very efficient with extremely quiet operation
- The Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
- The LCD DISPLAY shows temperature & power consumption curves to monitor the performance of the heat pump
- Six different models: 9kw, 12kw, 17kw, 19.5kw, 24.2kw, 28kw and 34kw
- All models single phase power (ie 220v to 240v)
- Suitable for pools, swim spas, and hot tubs, etc
- Desired water temperature can be set from +10c to +40c
- Soft start with reduced electrical startup requirements for properties with sensitive or limited power supplies
- Low noise, variable speed fan.
- Corrosion-resistant case
- Microprocessor controlled
- Automatic hot-gas defrosting.
- Titanium heat exchanger – resistant to corrosion from chlorine or salt pools.
- Operates in air temperatures as low as -15 °C.
- Capable of heating and cooling, all year round.
- Optional wifi module – control the heat pump from your smartphone or any web browser
- 3-Year Warranty
COP And Performance
By using the latest inverter technology, the Thermotec Inverter can outperform traditional on/off type heat pumps as well as many other inverter-driven models.
Even as the outside air temperature falls, the Thermotec Inverter will still perform well, delivering heat to your pool.
The Thermotec Inverter heat pumps can work well with outside air temperatures as low as -15c
The COP (Coefficient of Performance) is the ratio of the amount of heat (in kw) that the heat pump delivers to your pool compared to the electricity that the heat pump uses (in kw)
By using the latest inverter technology, the Thermotec Inverter has COPs up to 13.6. This means that in these conditions, 1kw of electricity consumed by the heat pump will output 13.6kw of heat to your pool!
Extremely Quiet Operation
The Thermotec Inverter range works very silently thanks to a unique internal ventilation system and inverter technology.
Both the fan and compressor automatically adjust their speed to match the pool heat demand, therefore once the pool is up to temperature, the unit can operate with reduced power consumption and noise.

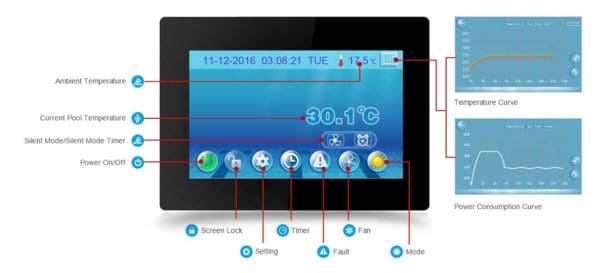

Colour Touch Screen Controls
The Thermotec Inverter has a unique 5″ colour backlit touch screen control/display panel
This provides easy to use controls
The display will show:
- The current pool water temperature
- The mode (eg heating or cooling)
- If the timer function has been set
- If the fan is operating
- The current time and date
- The outside ambient temperature
- If there is a fault, a fault code is displayed to explain the problem
In addition, the display can show:
- A graph of the temperature of the pool over time so that you can see how the pool temperature is being maintained by the Thermotec Inverter heat pump
- A graph of the power consumed by the heat pump over time
The colour display is backlit making it easy to read in low light conditions and also in bright sunlight.
Thermotec Eco Inverter Noise Chart
Thermotec Eco Inverter Display Controls The Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages
- Sizing
-
What size heat pump do I require for my pool?
The sizing guide for a covered pool is:
You may scroll the table on mobile
Model Kw Recommended Max Pool Volume Absolute Max Pool Volume Thermotec Inverter Horizontal 9kw 9kw 30m3 45m3 Thermotec Inverter Horizontal 12kw 12kw 40m3 60m3 Thermotec Inverter Horizontal 17kw 17kw 50m3 75m3 Thermotec Inverter Horizontal 20kw 19.5kw 65m3 95m3 Thermotec Inverter Horizontal 24kw 24.2kw 75m3 120m3 Thermotec Inverter Vertical 29kw 28.6kw 93m3 116m3 Thermotec Inverter Vertical 34kw 34kw 109m3 136m3 Thermotec Inverter Vertical 34kw (3-phase) 34kw 109m3 136m3 The Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages

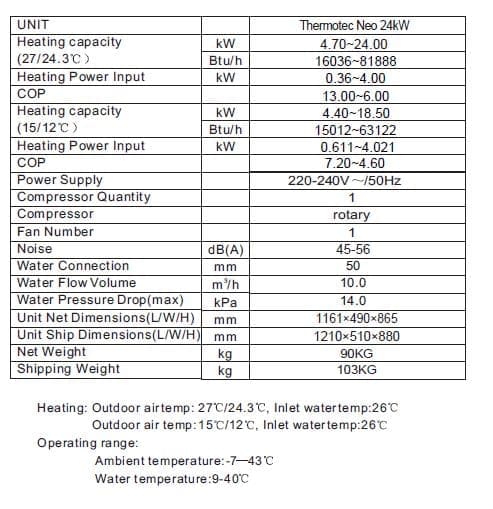

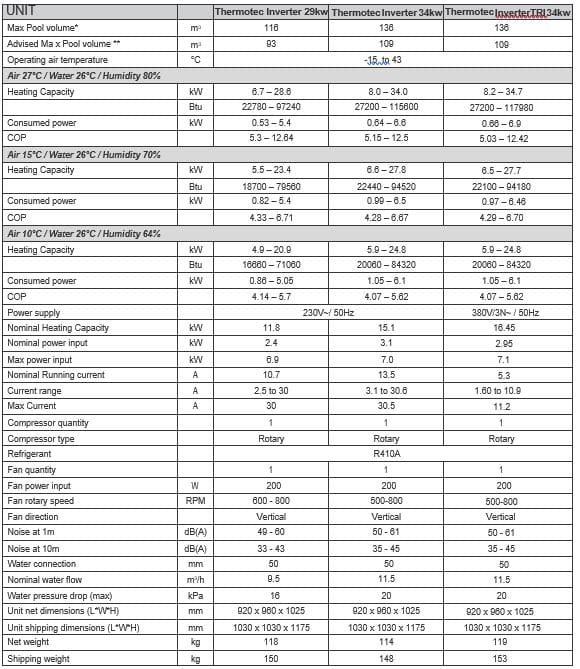

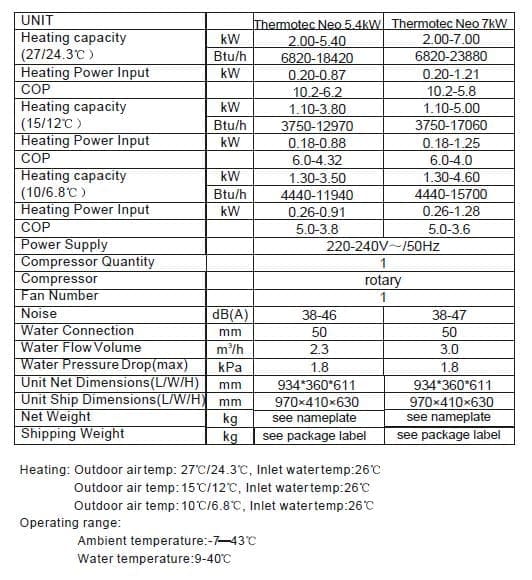

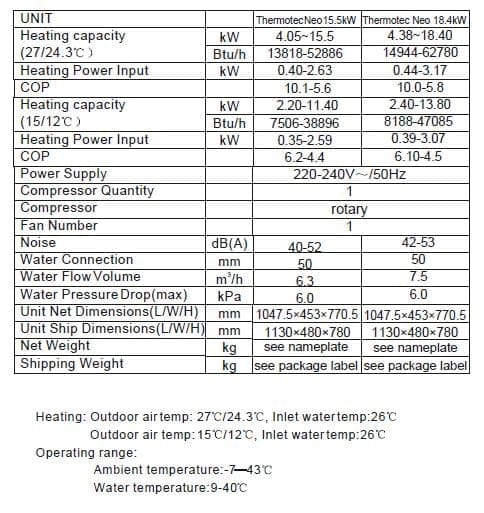

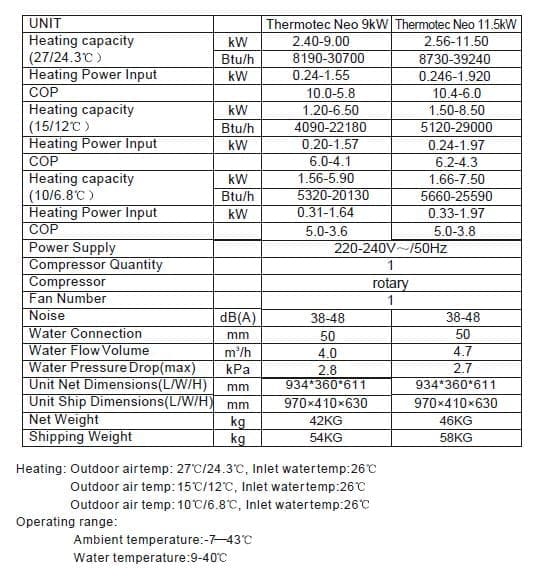

- Specifications
-
The Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages
- Wifi & Connections
-
Wi-Fi Control
The optional Wi-Fi module allows the Thermotec inverter Vertical 34KW to be monitored and controlled from a smartphone or any internet web browser.
WiFi Module: 1 LED
Wifi Module with 1 LED (Before Aug 2020) | Uses the Inverter Temp App
WiFi Module: 4 LEDS
Wifi Module with 4 LEDs (After Aug 2020) | Uses the Aqua Temp AppThe Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages
- Options & Extras
-
Heavy Duty Mounting Feet
These heat pumps come with rubber mounting feet (see photo above). Alternatively, you can purchase these heavy-duty Mounting Feet. These raise the unit off the ground by approximately 100mm and also help to reduce vibration. Please ask about our Mounting Feet and Slabs for more information.

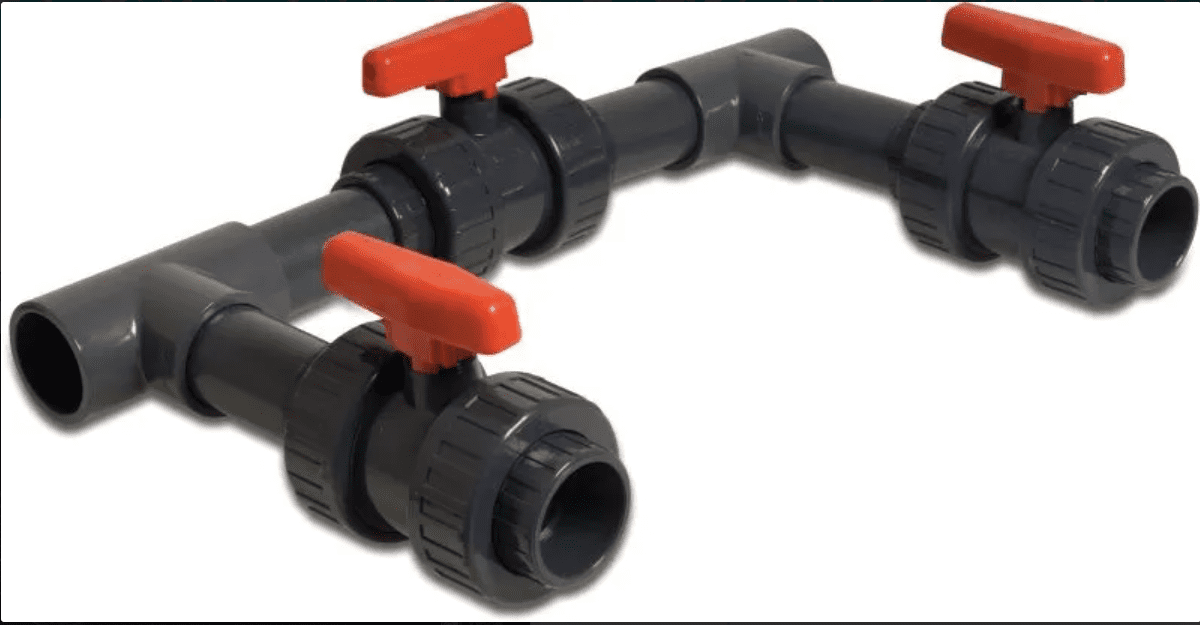

Bypass Kit
Please Contact Us for more information about our Bypass Kits.
Winter Cover
We offer a heavy duty cover which will give you added and extended protection against the winter weather. Please Contact Us about our heater Winter Covers for more information.

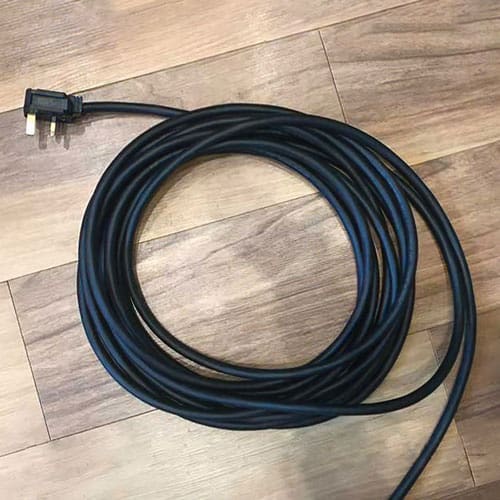

plug and play cable kit
We offer a plug and play cable kit, this allows the heat pump to be plugged into a standard 13A outdoor socket. Suitable for heat pumps with an input power up to 3kw or 13A.
- Docs
- Installation
-
Installation is straightforward. We can provide advice on installing your heat pump. We can also offer advice on how to acquire an installer in your geographical area..
Choose a location for your heat pump where it can get a good flow of air. The optimum efficiency of the heat pump relies on good airflow.
Where possible the heat pump should always be installed outdoors so it can receive a good supply of fresh air to operate and extract the heat from.

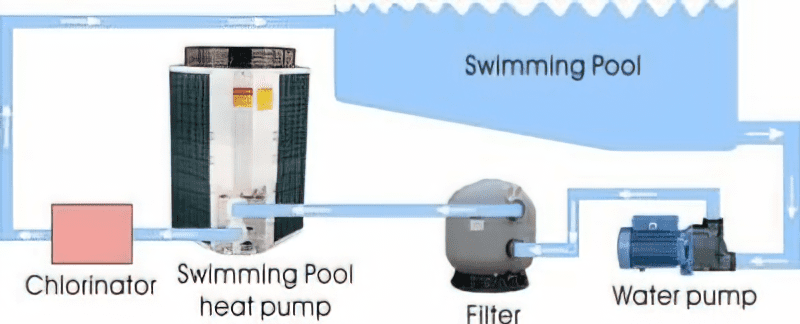

Pool heat pump layout illustration
Heatpump layout diagram - Delivery & Payments
-
PAYMENT METHODS
We accept all major credit and debit cards, Bank Transfer (BACS) and Paypal
FREE UK DELIVERY
We can ship to any country. Please contact us for a shipping quote.The lead time on most items is normally on a 1-2 day delivery, subject to availability. Please call to check availability.
Description
MY POOL DIRECT is the trusted specialist supplier of swimming pool heat pumps throughout the UK and Europe. We have many years of experience in the market and have used our expertise to research and design our own range of swimming pool heat pumps.
New, the Thermotec Eco Inverter range of pool heat pumps offers an excellent inverter-driven heat pump at a low cost with high value for money.
The Thermotec Eco Inverter range is fully inverter driven. This means that they automatically adjust the speed of the fan and compressor to precisely match the heat demand from the pool.
The ability to adjust the output of the heat pump allows the Thermotec Vertical Inverter Pool Heat Pump with Wifi to deliver greatly reduced running costs with COPs of up to 12.5. This means that for every 1kw of electricity used by the heat pump, 12.5kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market
In addition, the inverter technology has a reduced electrical startup requirement, making them ideal for properties with a sensitive or limited electrical supply.
Features
- Fully inverter driven with variable speed fan and compressor to deliver the lowest running costs with a maximum heat output
- High efficiency with COPs of up to 12.5. This means that for every 1kw of electricity used by the heat pump, up to 12.5kw of heat is returned to the pool.
- Equipped with an easy-to-use touch screen display/control panel.
- Top-quality Mitsubishi variable speed inverter compressor
- Brushless variable speed DC fan motor – very efficient with extremely quiet operation
- The Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
- Five different models: 7kw, 9kw, 12kw, 16kw, 19kw
- All models use single-phase power (ie 220v to 240v)
- Provides cooling and heating of pool water
- Suitable for pools, swim spas, hot tubs, and koi ponds, etc
- Soft start with reduced electrical startup requirements for properties with sensitive or limited power supplies
- Low noise, variable speed fan.
- Corrosion-resistant case
- Microprocessor controlled
- Automatic hot-gas defrosting.
- Built-in timer and clock
- Set Temperatures for this model are 15-43 degrees
- Silent mode
- Titanium heat exchanger – resistant to corrosion from chlorine or salt pools.
- Operates in air temperatures as low as -5 °C.
- 2-Year Warranty
Note: these heat pumps do not come with a power cable or plug. They require a heavy-duty piece of round flex cable with a 13A UK plug on the end.
The Eco Fun 7kw, 9kw, and 12kw can be run from a standard 13A UK Plug, larger models need to be hardwired as they can exceed 13A
Note: These heat pumps come with 50mm Unions for the use with 1.5″ Solid pipework – with this you will need to purchase 2 x 50mm to 1.5″ Adaptors plus a bottle of glue as listed on the optional extras.
For above-ground pools please choose 2 x 1.5″ Threaded Hosetail’s and 2 x Jubliee clips which are available on the listing as an optional extra. This will allow you to connect 32mm/38mm flexi hose.
MY POOL DIRECT is the trusted specialist supplier of swimming pool heat pumps throughout the UK and Europe. We have many years of experience in the market and have used our expertise to research and design our own range of swimming pool heat pumps.

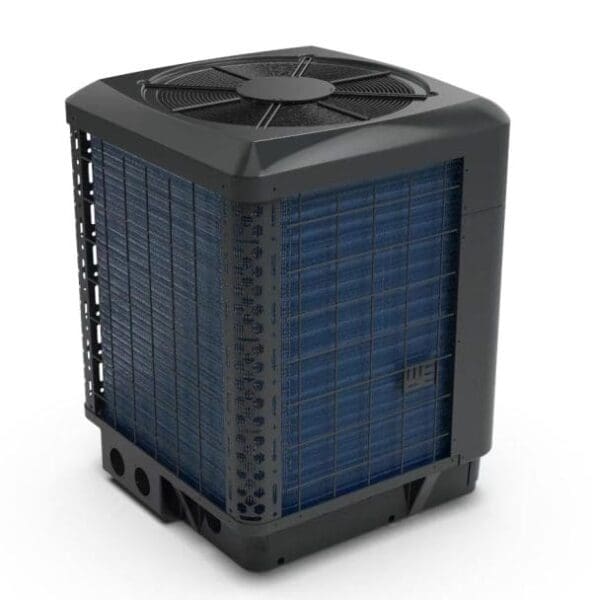

Thermotec Inverter Vertical 34KW
The ability to adjust the output of the heat pump allows the Thermotec inverter Vertical 34KW to deliver greatly reduced running costs with COPs of up to 13. This means that for every 1kw of electricity used by the heat pump, 13kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market
In addition, the inverter technology has a reduced electrical startup requirement, making them ideal for properties with a sensitive or limited electrical supply.
Features
- Fully inverter-driven with variable speed fan and compressor to deliver the lowest running costs with a maximum heat output
- High efficiency with COPs of up to 13. This means that for every 1kw of electricity used by the heat pump, 13kw of heat is returned to the pool.
- The desired water temperature can be adjusted in steps of 0.1 °C.
- Equipped with an easy-to-use 5-inch colour touch screen display / control panel.
- Remote control and monitor your heat pump via an app on your smartphone
- Top-quality Mitsubishi variable speed inverter compressor
- Brushless variable speed DC fan motor – very efficient with extremely quiet operation
- The Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
- The LCD DISPLAY shows temperature & power consumption curves to monitor the performance of the heat pump
- Six different models: 9kw, 12kw, 17kw, 19.5kw, 24.2kw, 28kw and 34kw
- All models single phase power (ie 220v to 240v)
- Suitable for pools, swim spas, and hot tubs, etc
- Desired water temperature can be set from +10c to +40c
- Soft start with reduced electrical startup requirements for properties with sensitive or limited power supplies
- Low noise, variable speed fan.
- Corrosion-resistant case
- Microprocessor controlled
- Automatic hot-gas defrosting.
- Titanium heat exchanger – resistant to corrosion from chlorine or salt pools.
- Operates in air temperatures as low as -15 °C.
- Capable of heating and cooling, all year round.
- Optional wifi module – control the heat pump from your smartphone or any web browser
- 3-Year Warranty
COP And Performance
By using the latest inverter technology, the Thermotec Inverter can outperform traditional on/off type heat pumps as well as many other inverter-driven models.
Even as the outside air temperature falls, the Thermotec Inverter will still perform well, delivering heat to your pool.
The Thermotec Inverter heat pumps can work well with outside air temperatures as low as -15c
The COP (Coefficient of Performance) is the ratio of the amount of heat (in kw) that the heat pump delivers to your pool compared to the electricity that the heat pump uses (in kw)
By using the latest inverter technology, the Thermotec Inverter has COPs up to 13.6. This means that in these conditions, 1kw of electricity consumed by the heat pump will output 13.6kw of heat to your pool!
Extremely Quiet Operation
The Thermotec Inverter range works very silently thanks to a unique internal ventilation system and inverter technology.
Both the fan and compressor automatically adjust their speed to match the pool heat demand, therefore once the pool is up to temperature, the unit can operate with reduced power consumption and noise.
Colour Touch Screen Controls
The Thermotec Inverter has a unique 5″ colour backlit touch screen control/display panel
This provides easy to use controls
The display will show:
- The current pool water temperature
- The mode (eg heating or cooling)
- If the timer function has been set
- If the fan is operating
- The current time and date
- The outside ambient temperature
- If there is a fault, a fault code is displayed to explain the problem
In addition, the display can show:
- A graph of the temperature of the pool over time so that you can see how the pool temperature is being maintained by the Thermotec Inverter heat pump
- A graph of the power consumed by the heat pump over time
The colour display is backlit making it easy to read in low light conditions and also in bright sunlight.
The Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages
What size heat pump do I require for my pool?
The sizing guide for a covered pool is:
You may scroll the table on mobile
| Model | Kw | Recommended Max Pool Volume | Absolute Max Pool Volume |
|---|---|---|---|
| Thermotec Inverter Horizontal 9kw | 9kw | 30m3 | 45m3 |
| Thermotec Inverter Horizontal 12kw | 12kw | 40m3 | 60m3 |
| Thermotec Inverter Horizontal 17kw | 17kw | 50m3 | 75m3 |
| Thermotec Inverter Horizontal 20kw | 19.5kw | 65m3 | 95m3 |
| Thermotec Inverter Horizontal 24kw | 24.2kw | 75m3 | 120m3 |
| Thermotec Inverter Vertical 29kw | 28.6kw | 93m3 | 116m3 |
| Thermotec Inverter Vertical 34kw | 34kw | 109m3 | 136m3 |
| Thermotec Inverter Vertical 34kw (3-phase) | 34kw | 109m3 | 136m3 |
The Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages
The Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages
Wi-Fi Control
WiFi Module: 1 LED
WiFi Module: 4 LEDS
The Thermotec inverter Vertical 34KW App is available for both Android and iPhone
The Wi-Fi module simply connects to the heat pump via the supplied cable
The module is then joined to your wi-fi network to allow it to communicate with the internet
The wifi module also allows the manufacturer to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.
The Thermotec inverter Vertical 34KW app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Note: A wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.
Please test the strength of the wifi signal eg with a laptop or your smartphone before purchasing the wifi module.
If you do not have a wifi signal at the heat pump’s location, then you can either:-
- Use a wifi signal extender to boost the signal in the area of the heat pump
- Use power LAN adaptors plugged into MAIN sockets in the house and the pool shed. You can then connect wifi extended to the powerLAN adaptor in your pool shed.
The Aqua Temp app can then be installed into your smartphone to give full remote control and monitoring of your pool heat pump.
Using the app you can:
- Turn the heat pump on and off
- See the current pool water temperature
- Alter the desired pool set temperature
- Set the timer
- View the pool temperature history graph
- Change the mode of the heat pump from heating, cooling, and auto modes
- Put the heat pump in and out of silence mode (eg for nighttime use)
- Show the weather temperatures and information
- Display any error codes and messages
Heavy Duty Mounting Feet
These heat pumps come with rubber mounting feet (see photo above). Alternatively, you can purchase these heavy-duty Mounting Feet. These raise the unit off the ground by approximately 100mm and also help to reduce vibration. Please ask about our Mounting Feet and Slabs for more information.
Bypass Kit
Please Contact Us for more information about our Bypass Kits.
Winter Cover
We offer a heavy duty cover which will give you added and extended protection against the winter weather. Please Contact Us about our heater Winter Covers for more information.
plug and play cable kit
We offer a plug and play cable kit, this allows the heat pump to be plugged into a standard 13A outdoor socket. Suitable for heat pumps with an input power up to 3kw or 13A.
Installation is straightforward. We can provide advice on installing your heat pump. We can also offer advice on how to acquire an installer in your geographical area..
Choose a location for your heat pump where it can get a good flow of air. The optimum efficiency of the heat pump relies on good airflow.
Where possible the heat pump should always be installed outdoors so it can receive a good supply of fresh air to operate and extract the heat from.
PAYMENT METHODS
We accept all major credit and debit cards, Bank Transfer (BACS) and Paypal
FREE UK DELIVERY
We can ship to any country. Please contact us for a shipping quote.
The lead time on most items is normally on a 1-2 day delivery, subject to availability. Please call to check availability.
